描述
FOPS-610是功能最多的多用途儀器，適用於中小型樣品。
最大12.1英寸面板（16：9和4：3）。
FOPS-610是一個帶有5個電動軸的測角儀器
(日製5相步進馬達or 5相微步進馬達 or日製伺服馬達)
Theta inclination: 0° to 90°
Panel rotation (Phi rotation) : 0° to 360°
X Travel distance : 500mm
Y Travel distance : 500mm
Z-axis: 0 .. 20mm ( to compensate panel thickness)
內建德製高精度Color Matcher 彩色分析儀及Carl Zeiss高精密度光譜儀，類似DMS系統使用精密光纖技術，減少XY Table承載負擔，確保量測位置之穩定再現性，併可為客戶開發連接客製之專用小尺寸VG 或控制板，以自動供應各式測試Pattern，本系統可量測項目如下:
單點色彩規格: x,y +/- 0.002(0.005) ; Lv +/- 2%
可顯示 : Lv ,x, y , ⊿ xy , ⊿ u’v’ , ⊿ u’v’, Tcp, ⊿ uv, λd Domain Wavelength, Purity, λp, Spectrum Chart, Le…

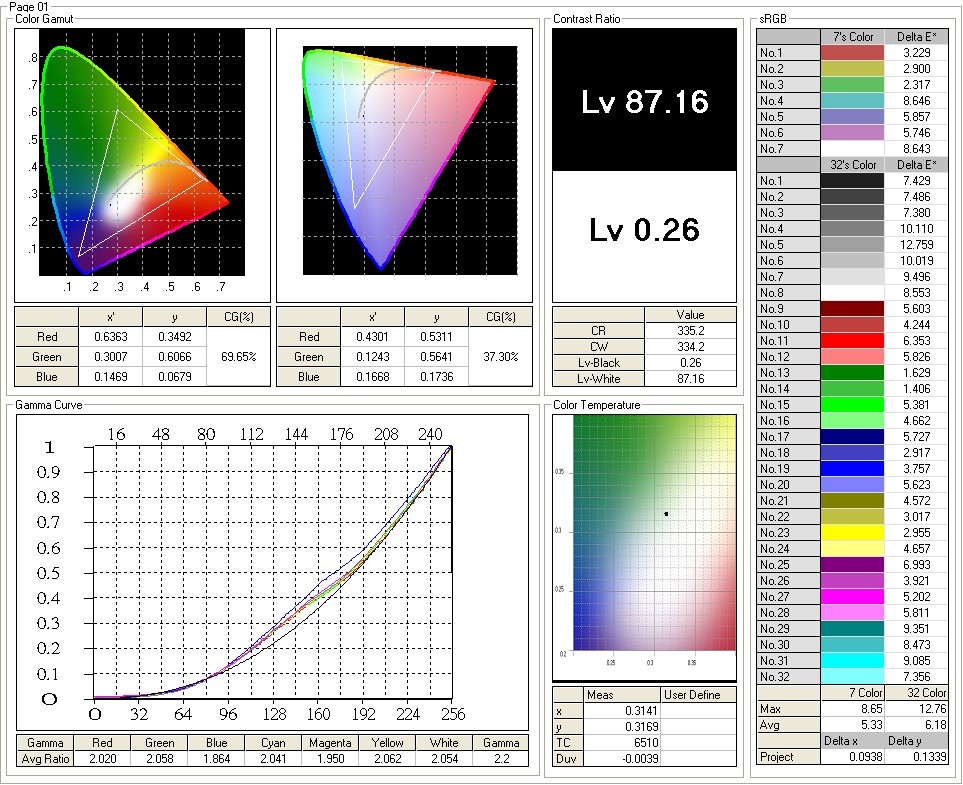

Gamma Curve Measure
Gray Balance Measure
Cross Talk Measure (Each color / level)
NTSC Ratio (Color Gamut) Measure
Contrast Ratio Measure

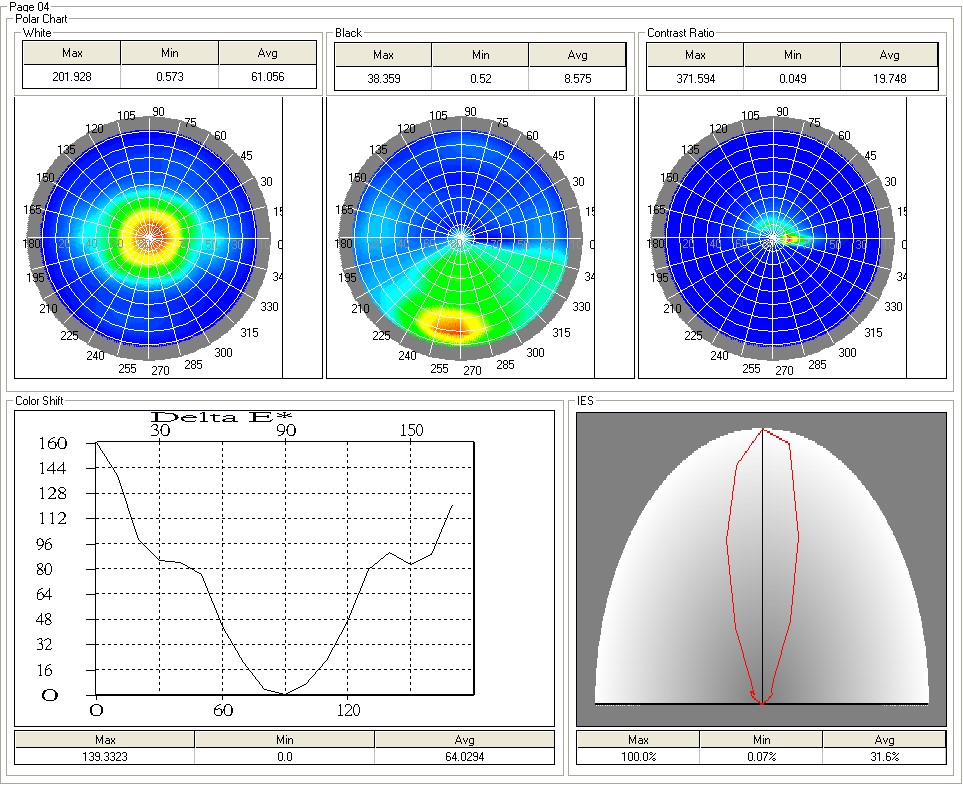

Contrast Ratio Polar Chart (With Theta and Phi viewing angle / resolution:1 degree)
Uniformity Measure (5 or 9 or 13 Points or User define) (Selectable : Base on VESA Std or 小尺寸常用 Std)
Uniformity 2D Chart

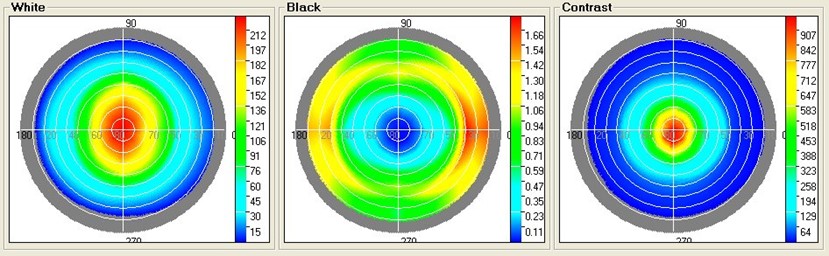

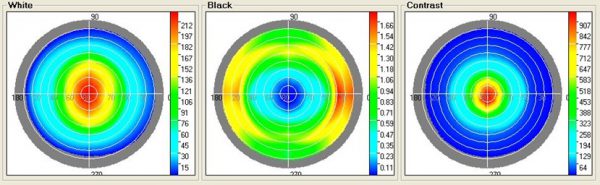

Viewing Angle Polar Chart (可選擇各種色彩)
Viewing Angle VS. Luminance Curve (IES)
電性分析及反射面板分析項目
1.V / T Curve for Panel (with programmable Data Sweep Voltage VS. Luminance)
2.I / T Curve for Back light
3.I / V Curve for Back light
4.Transmission Ratio VS. Wavelength Chart (collocate with stable light source)
5.EIAJ Method D : 反射白色色度 (With Light Source D65 / C / A / D55 / D50 / D75 / F2 / F7 / F8 …)
6.EIAJ Method A : 反射白色色度變化量 VS. Viewing Angle
7.CIE Lab Chart
8.配合RT-603 可量測Gray to Gray Response Time
