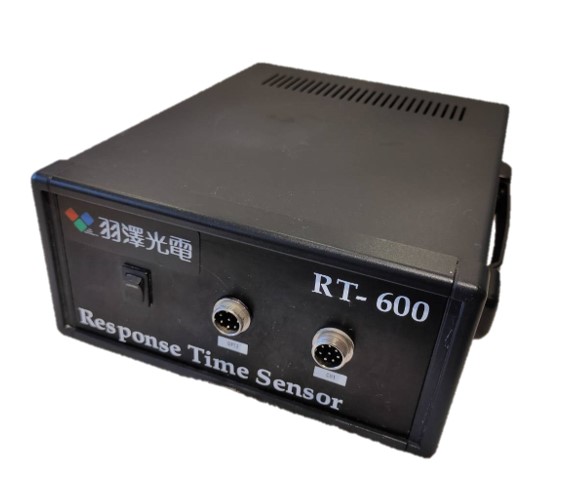

The response time of display is a very important quality. The performance of the response time is also the main battle filed between all the panel makers. However, the response time sensors on the market are either too expensive or inaccurate. For solving this problem, Winglobal Technology has developed RT-600 for highly accurate response time measuring capability. Winglobals system can reach accuracy to as small as 2us, it can also measuring flicker.
Product Characteristics ：
1.Measuring image response quality under high speed.
2.Has normal measure, advance measure and flicker measure modes Cost-effective and realizable accuracy (2μs)
Technology Explanation ：
1.Designed according to VESA standard to measure Response Time and Gray-to-Gray response time.
2.Use PMT to effectively reflect the changes in luminance.
3.Use sensor with response time lower than μs(10e-6) to make sure that the sensor reach normal display’s ms(10e-3）accuracy.
4.Utilizing NI’s high sample rate DAQ 500ks/s so it could clearly record the detail changes.
Functionalities ：
1.Black/White Measuring: Comply with normal standard’s basic measurement.

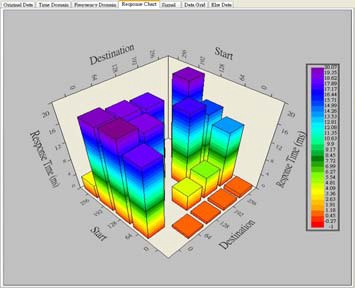

2.Matrix Measuring (2×2、4×4、8×8、16×16、32×32 …etc): Support very detail and advance measuring to accurate reflect the real conditions.
Flicker Measuring function ：
F MA： VESA Standard (AC/DC)
J EITA：Method defined by Japan’s JIS (1Hz~60Hz(dB))
