FPD Optical Performance System Features & Benefits
1.The FOPS is a versatile multi-purpose instrument, suitable all kind of XY table for any sizes.
2.The FOPS can combine with XY table to perform optical performance measurements.
3.Theta inclination: 0° to 90°
4.Panel rotation (Phi rotation) : 0° to 360°
5.X, Y axis’ travel distance depends on the size of the monitor wish to be measured.
Utilizing Germany made high precision color matcher color analyzer and Car Zeiss high precision spectral meter using DMS type of precision fiber technology to reduce the loads on XY table and make sure the measuring position’s stability. The measuring items are as follow:
Single point color specification : x,y +/- 0.002(0.005) ; Lv +/- 2%
1.Could show : Lv ,x, y , ⊿ xy , ⊿ u’v’ , ⊿ u’v’, Tcp, ⊿ uv, λd Domain Wavelength, Purity, λp, Spectrum Chart, Le…
2.Gamma Curve Measure
3.Gray Balance Measure
4.Cross Talk Measure (Each color / level)
5.NTSC Ratio (Color Gamut) Measure
6.Contrast Ratio Measure

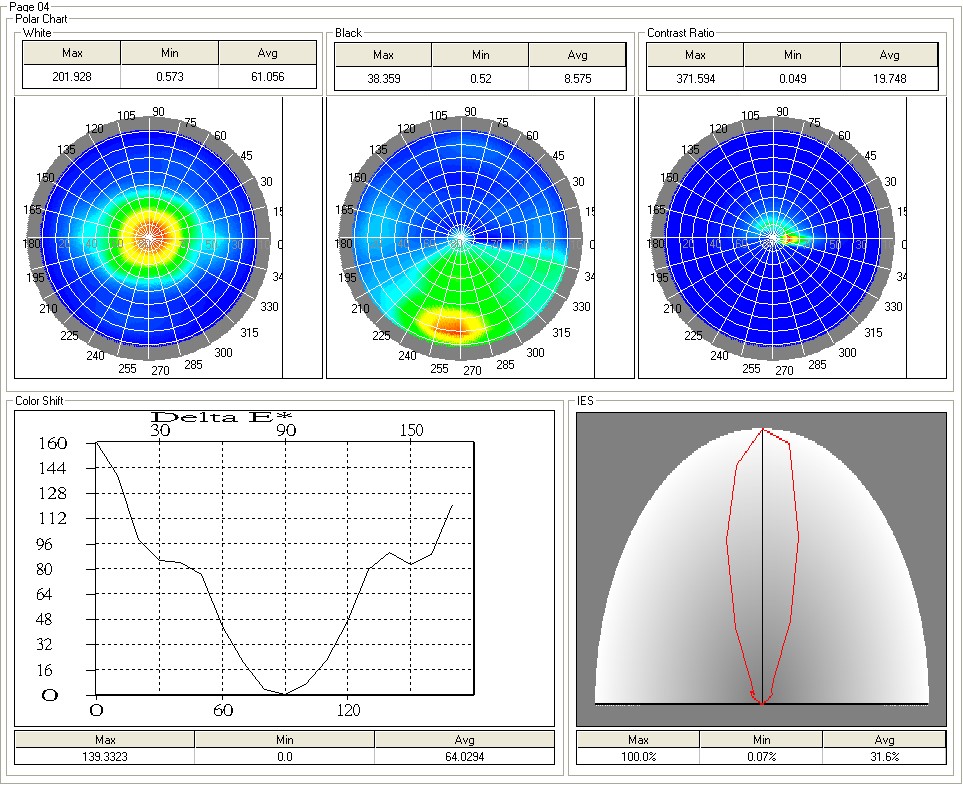

7.Contrast Ratio Polar Chart (With Theta and Phi viewing angle / resolution:1 degree)
8.Uniformity Measure (5 or 9 or 13 Points or User define) (Selectable : Base on VESA Standard)
9.Uniformity 2D Chart
10.Viewing Angle Polar Chart (Could select various colors)
11.Viewing Angle VS. Luminance Curve (IES)
12.CIE 1931 Chart
13.CIE 1976 Chart
14.CIE Lab Chart
15.sRGB ⊿E
16.Could design reports according to customer needs
Opt.001 : 3 Channels Programmable DC Power supply (2 Output for Data Line and GG Line or Gate Line ; 1 Output for Back Light Source ; resolution : 0.01V)
Opt.002 : 6 ½ Programmable DMM
Opt.003 : V / T Curve for Panel (with programmable Data Sweep Voltage VS. Luminance)
Opt.004 : V / I Curve for Back light
Opt.005 : Light source for Reflective Panel (類A光源、太陽燈）
Opt.006 : Integrate Sphere
Opt.007 : Standard White board
Opt.008 : RT-603 PMT Sensor for GTG Response Time
