Solar Matrix S989 is an analysis tool developed by Winglobal Technology to analyze the combination effect of backlight source and color filter. This software could let users important or measure real data from the measuring equipments they used to the system and perform simulation on different combinations to find the optimum solution. This tool is the best tool for the R&D departments of backlight source and color filter manufacturers. It also users to perform various combination matching and simulation to find the best direction for development.
Characteristics：
1.Can build up material DB for easy analysis
2.Can carry out optimum parameters matching

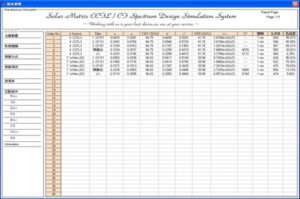

3.Automatic analysis report generation
4.Can export data to Excel for further analysis on users’ discretion.
5.Can automatically generate x,y,u’,v’, spectral,Tcp, λD in light source data generation.
6.Can use the real data from light source and panel to calculate real data in color filters.
7.Can get the real light source data from real color filter and panel results.
System Requirement：
1.PC/AT X86 compliant hardware windows 2000 (SP4) /XP(SP2)
2.Usable free memory of 256MB
3.RS-232 Port *,USB 2.0 port *1
Software functions：
1.Build Backlight and CF database

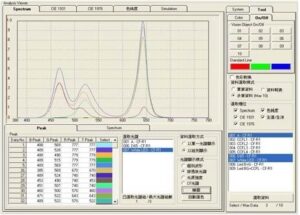

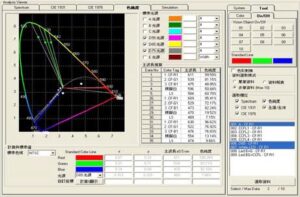

2.Optical and Chromaticity Analysis
3.Easy generation of related analysis reports.
