Describe1. Introduction:
TechWiz LCD 1D Plus is the fastest analysis software for TechWiz LCD. Through the setting of a single structure, it can be mainly used for fast simulation of various optical films and fast liquid crystal and optical characteristics analysis of simple structures. The special TechWiz Polar module can be used in real time. It performs various optical and polarization state analysis, directly supports liquid crystal simulation operation in Tensor/Vector mode, supports Extend Jones, Berremen, and Mueller in optical analysis mode, and supports Reflection Model simulation of reflection.
2. Software advantages:

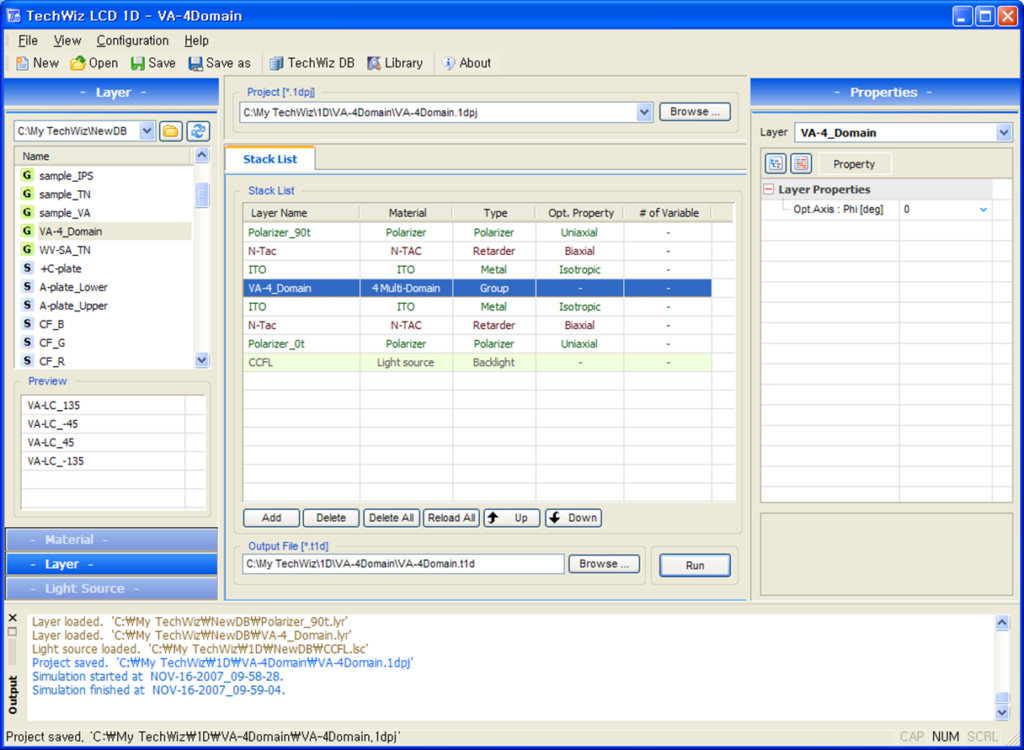

I. Easy to operate and use: The simple and clear interface allows the user to easily define the structure, and the user can see the defined structure immediately.

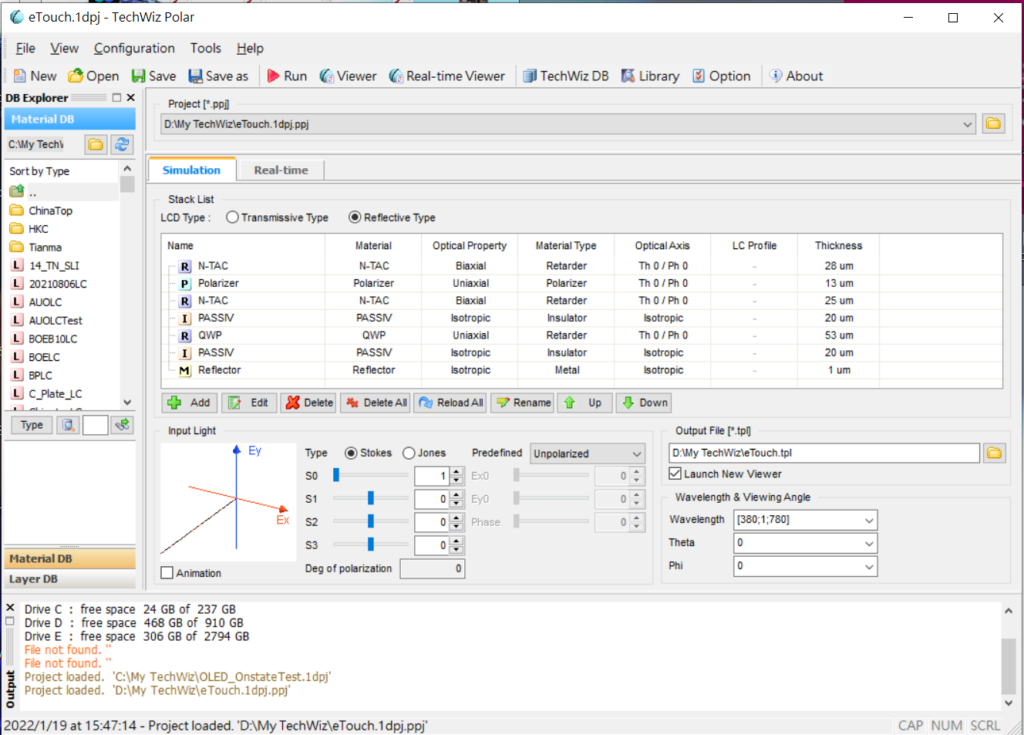

II. Includes TechWiz Polar simulation for instant polarization and optical simulations:
3. Software Features:

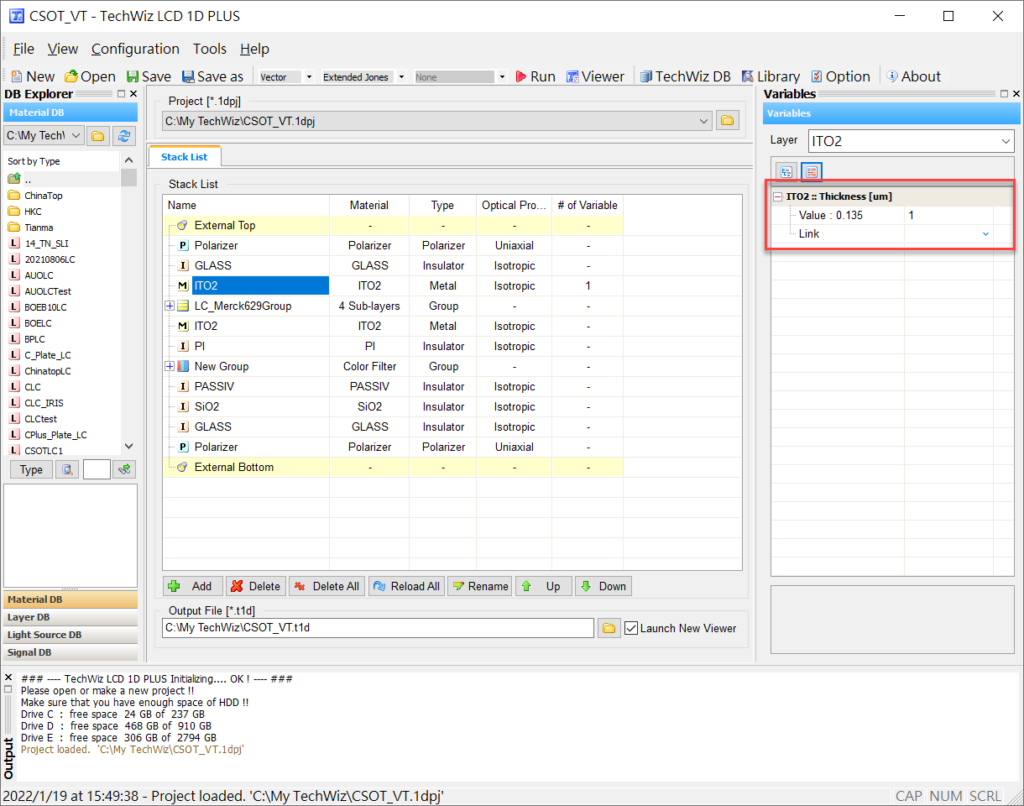

I. All structure parameters can be set as variables

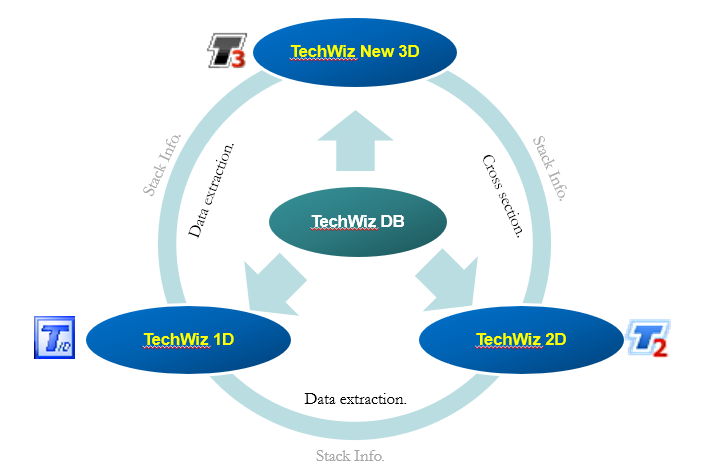

II. Share TechWiz DB module with TechWiz LCD 1D and TechWiz LCD 3D, can share parameters quickly

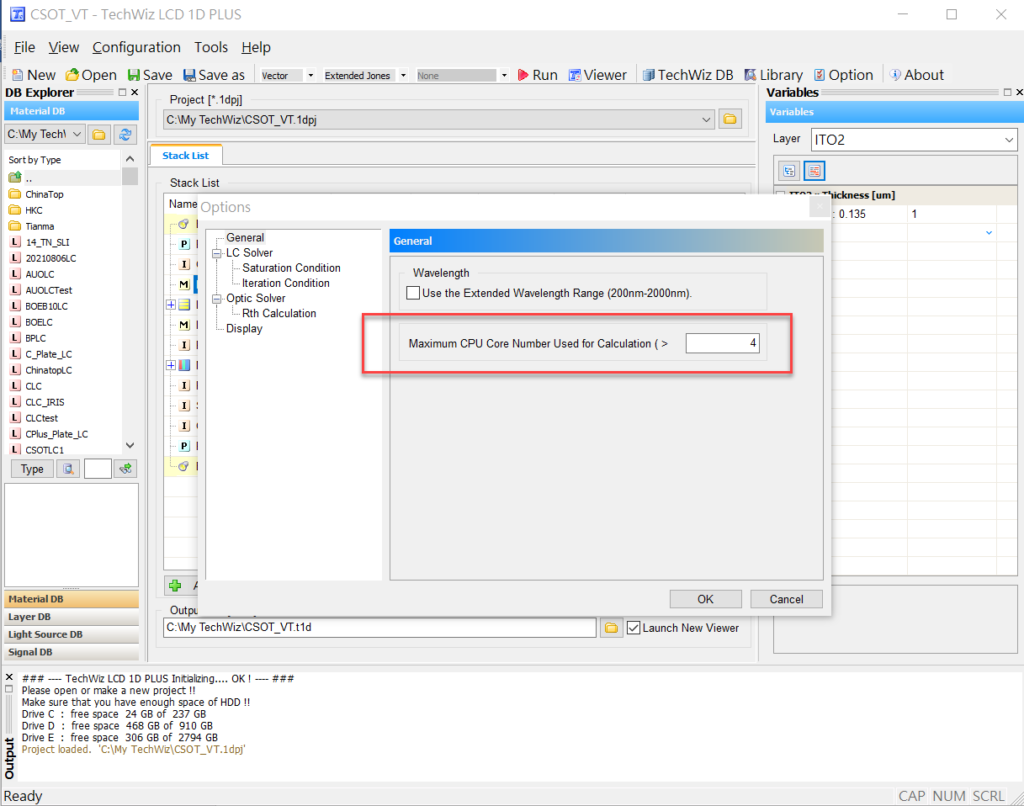

III. Support Multi-Core Computing

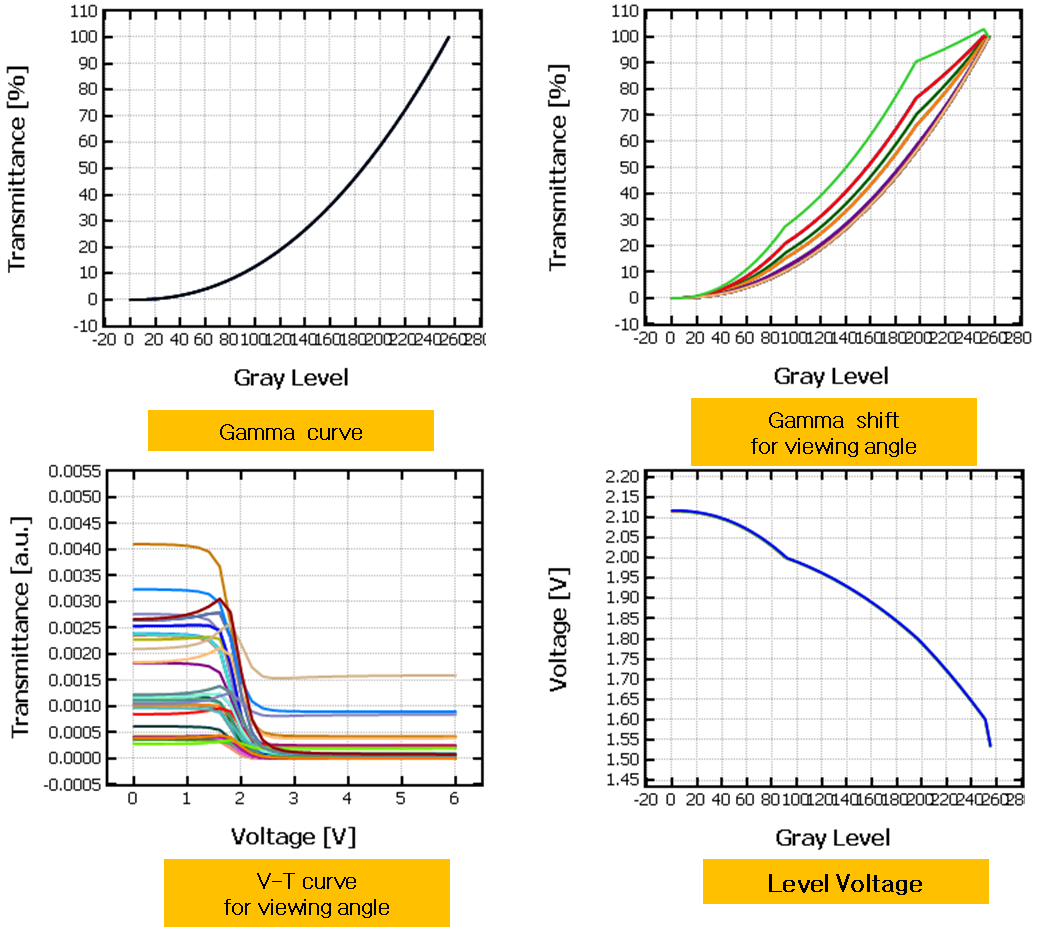

IV. Powerful Viewer module can combine and analyze simulation data

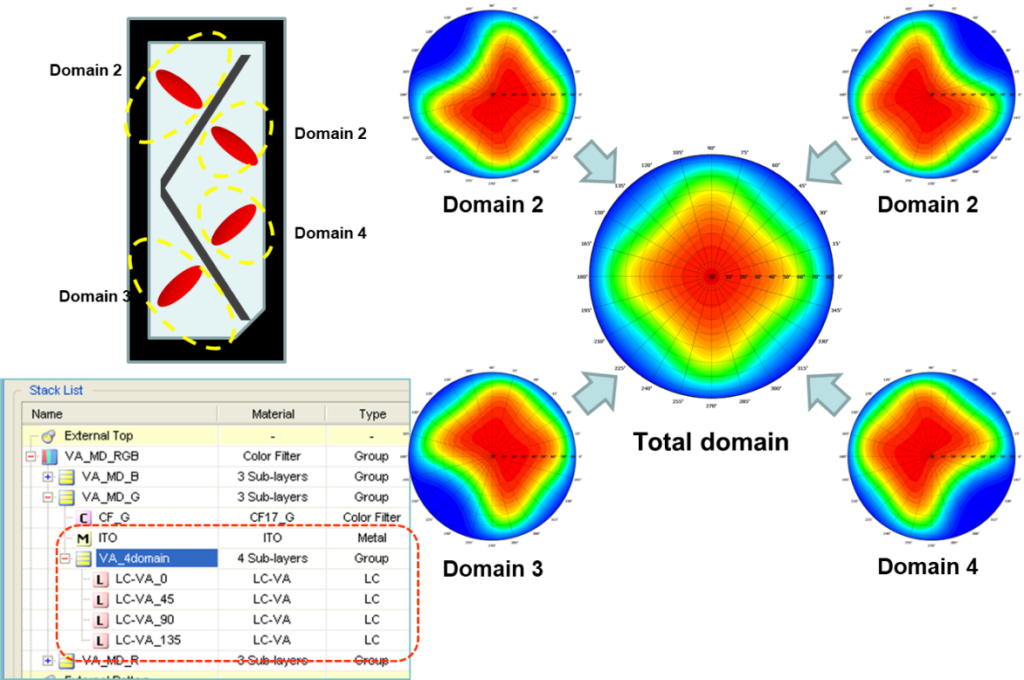

V. Support Multi-Domain Analysis

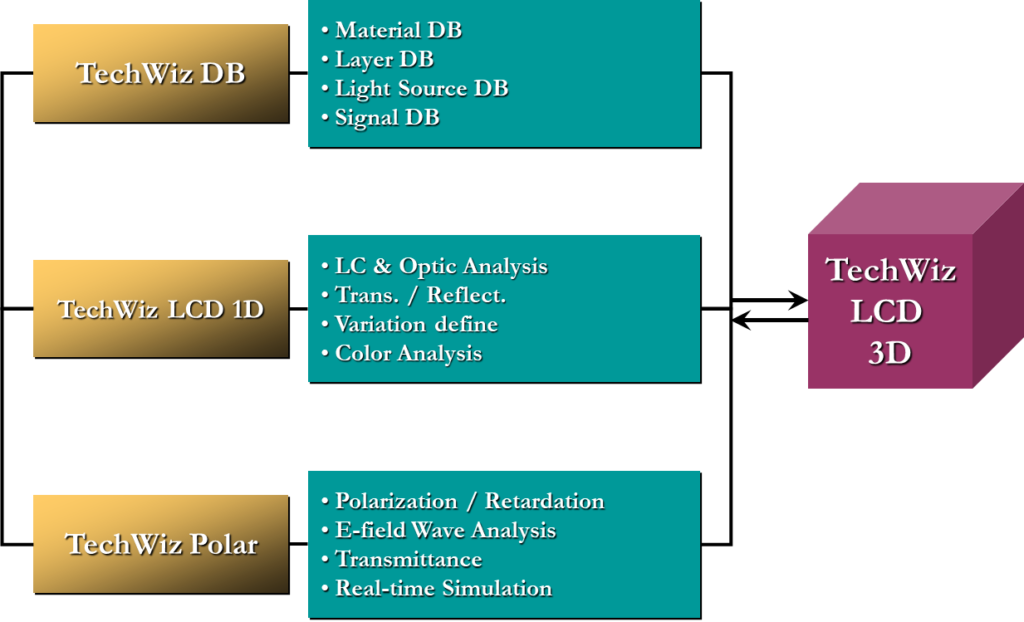

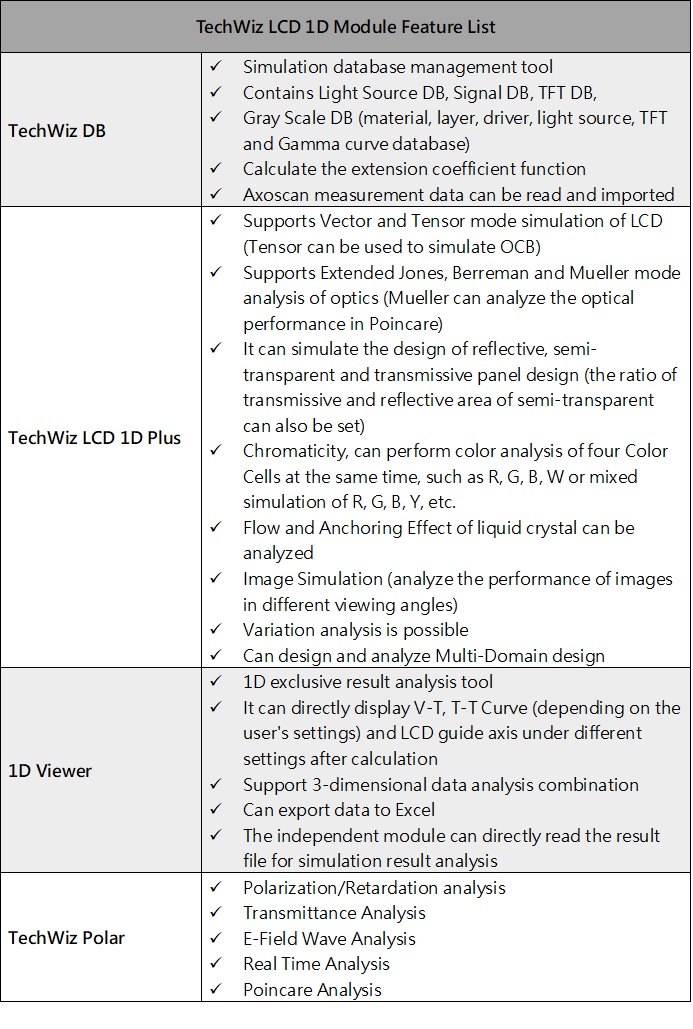

3. Basic modules and functions of TechWiz LCD 1D Plus
