描述
It’s the world best 3D simulation software for LCD design. It’s useful for developing new LCD panel, and defect analysis with shortened the period and the cost. Almost electro-optical characteristics and performance of the LCD panel can be obtained by the simulator and the idea.
TechWiz DB：TechWiz DB is unified database management program. User can define, edit, save database on user-friendly GUI of the program.
TechWiz Layout：TechWiz Layout is mask layout editor with advanced layout design functions and 3D structure definition function using process recipe. User can define 3D structure with ease.
TechWiz Mesh：TechWiz Mesh is 3D adaptive mesh generator for finite element method. It can generate a conformal structure by deposited layer by layer like real process of LCD.

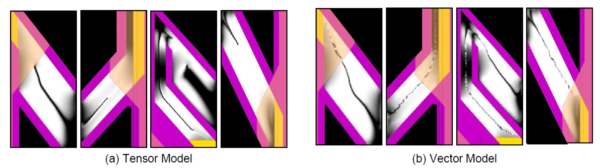

TechWiz LC：TechWiz LC is 3D LC dynamics simulator. It calculate LC director profiles for voltage and time conditions. It include various option modules for technical issues.
TechWiz Optics：TechWiz Optics is optical simulation software for transmissive, reflective, and transflective LCDs.- Transmittance, reflectance, transflectance, luminance, contrast, viewing angle, wavelength dispersion, response time, polarization status, color performance
– E-Jones, Berreman, Mueller matrix solvers
TechWiz RC：TechWiz RC is electrical parasitics extraction simulator for LCD.
TechWiz Panel：TechWiz Panel is static image reproduction simulator for LCD panel. User can check the panel image reproduction performance using electro-optical performance of user designed pixel of the LCD.
TechWiz Viewer：TechWiz Viewer is post-processor of the simulator for visualization and data analysis. User can easily control the visualized data to analyze the data and make report.
