描述

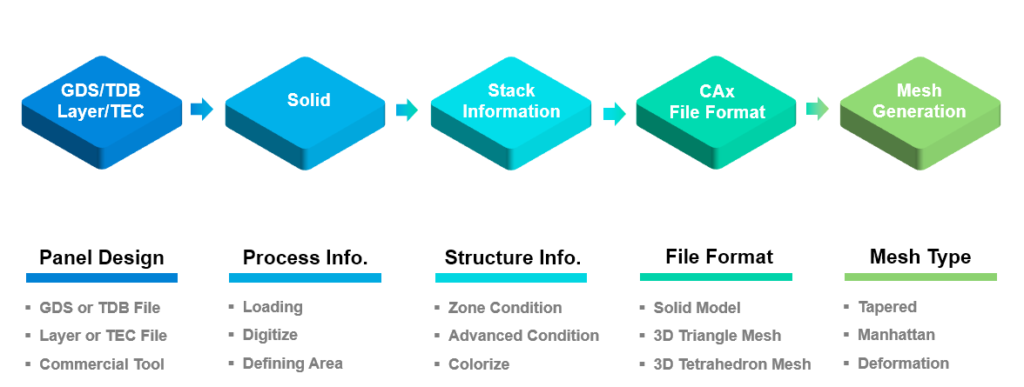

1.Introduction： In view of the fact that many 3D simulation software on the market have very limited Mesh generation capabilities, it is impossible to generate the required simulation structure according to the actual structure. Sanayi System uses the Mesh generation mechanism and Mesh Generator that it has developed for many years to create TSolidX. This software can generate various 3D structure formats for use by other 3D simulation software, and also makes the generation of Mesh structures easier. 2.TSolidX product concept： It allows users to easily define the structure and generation method, and then generate Mesh meshes according to the format required by users. The process is as follows：
3.TSolidX software features：
-
It can be embedded in other structural design tools, and can be directly executed from other structural editing tools through the Skill language interface;
-
Advanced mesh generation technology: use various structure generation functions to build real structures;
-
Users can define various stacking information and processing conditions (thickness, step coverage, flattening, non-selective etching, etching barrier, etc.), these various advanced functions allow users to easily generate accurate 3D grid structure;
-
Provides etching process options, including non-selective etching, etch stop, wet etching function, partial etching by halftone mask;
-
Provide two 3D mesh types: Tapered and Manhattan type
-
Built-in Layout program for structure setting;
-
There are various types of CAx format files for exporting data: for solid models, step and IGES formats are provided, for 3D triangle meshes, STL, Stanford triangle, Nastran, alias/wavefront/autocad dxf, etc. are provided. The 3D square grid provides Nastran, ansys, Gmsh, abaqus input formats, in order to meet the needs of customers, you can also add specific format files;
-
Various 3D mesh structures can be generated very easily and quickly by using the variable function, variable parameters that can be set: thickness, levelness (planarization), taper angle and width, CD allowance, corner rounding and shift distance ;
-
Supports distributed and parallel computing methods

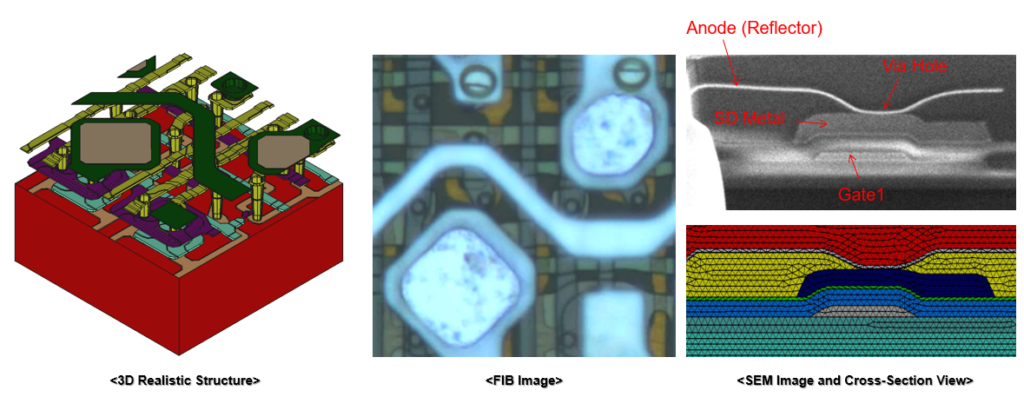

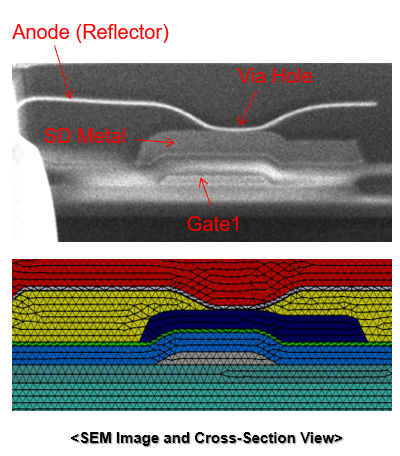

Mesh generation close to the actual structure：

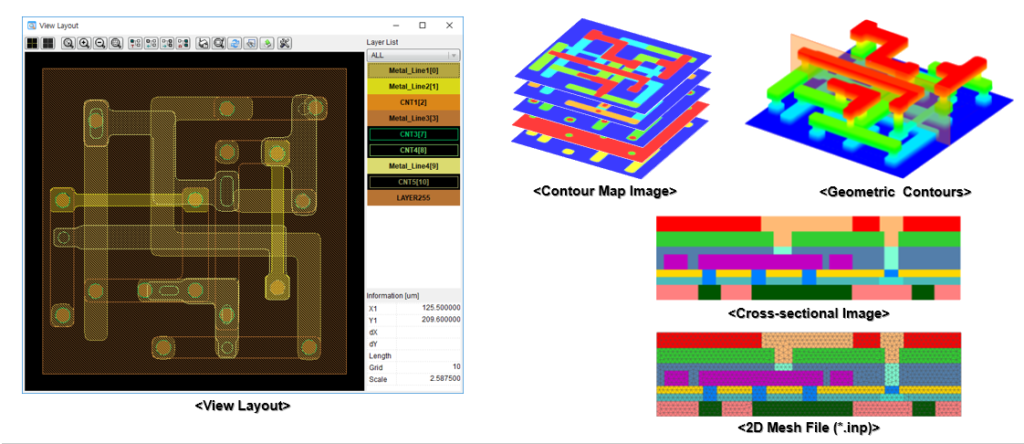

Built-in GDS and TX Viewer (GDS Viewer: Can view GDS structure and related settings, TX Viewer: Can view generated structure)
