1. Introduction:Sanayi System’s TVolumeX simulation software is the only software on the market that can input the entire Panel design information and analyze the liquid crystal volume. The software can analyze the liquid crystal volume and analysis that may be required under different Column Spacers (Photo spacers). And judge the possible liquid crystal volume of each droplet. It can assist the design unit to estimate the possible amount of liquid crystal to help reduce the R&D and manufacturing cost.

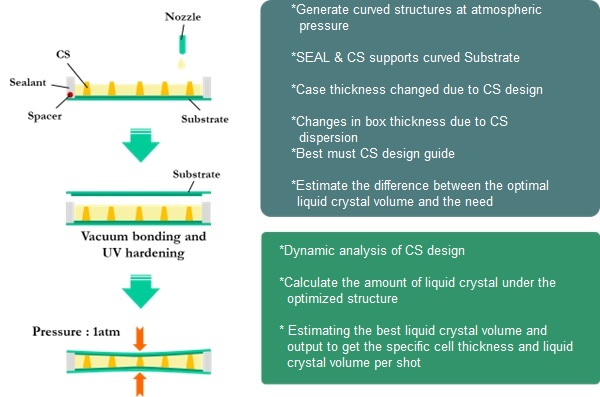

2. TVolumeX simulation concept:
allow users to import the design drawing of the entire Panel, and calculate the possible liquid crystal volume under different Spacers and different atmospheric pressures. The software can estimate the optimal liquid crystal drop volume, and if the drop point is defined, it can also estimate the drop volume at each point.

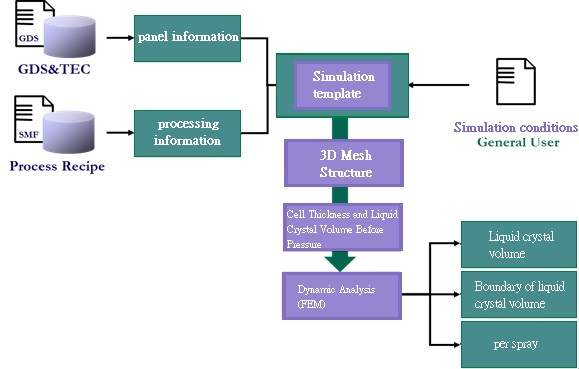

3. TVolumeX simulation process:

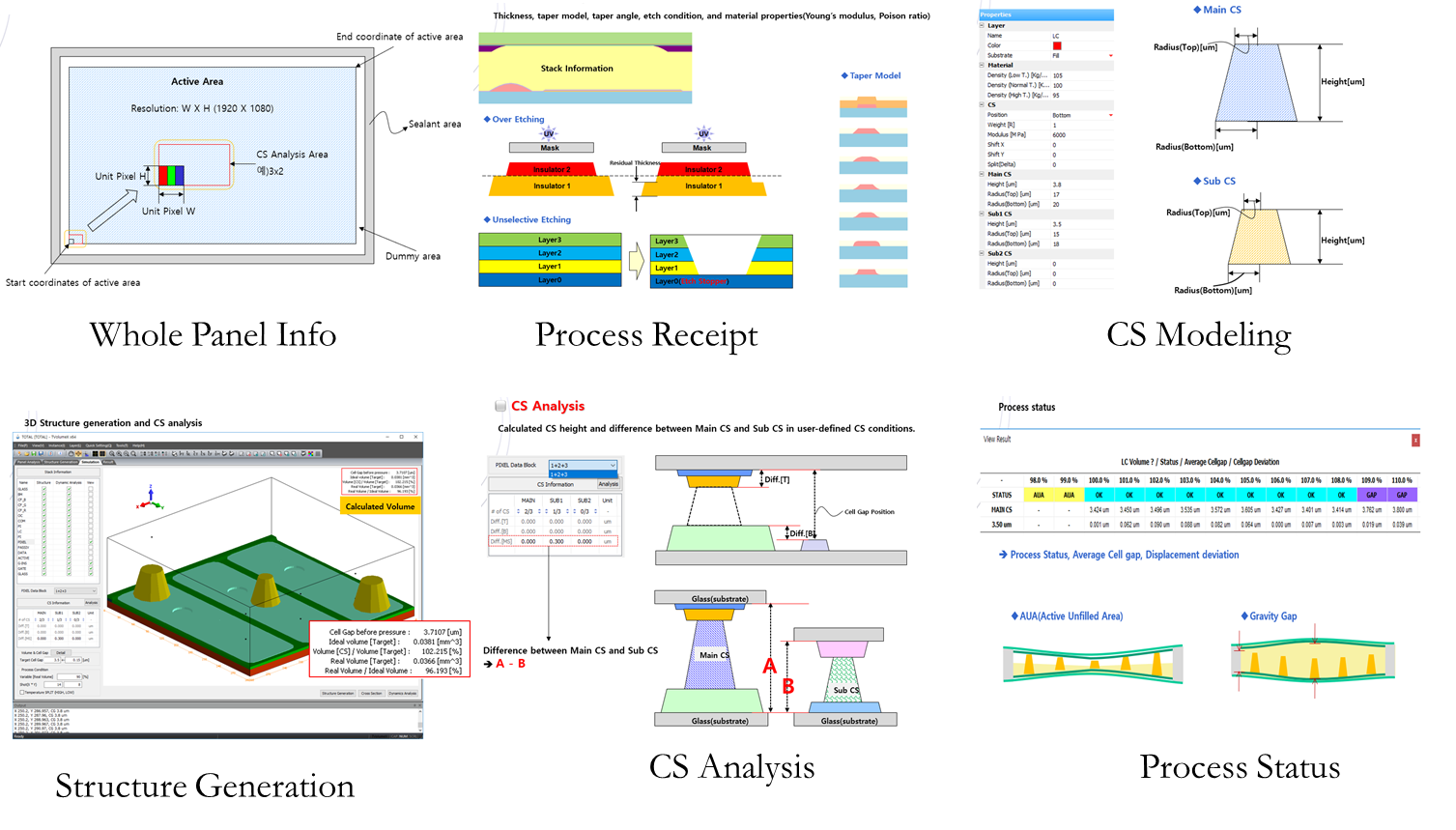

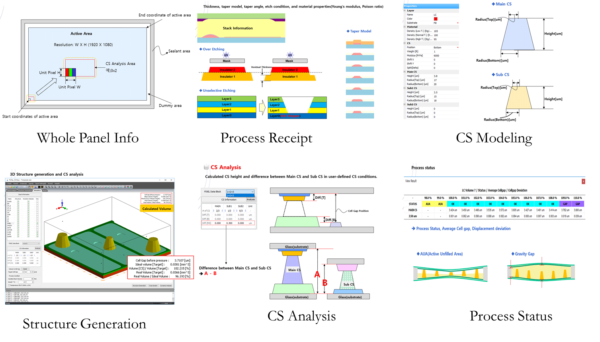

4. Features of TVolumeX software:
1. You can enter complete Panel design information
2. Actual structures can be generated for space simulation
3. Different Spacer states can be designed
4. The amount of liquid crystal under different CS can be estimated
5. It can estimate the liquid crystal droplet volume of each nozzle under different nozzles
6. Structural variables can be set to estimate the amount of liquid crystal required under different structural variables
7. It has the function of batch (Batch) simulation, allowing users to define a large number of variables and projects to simulate sequentially
8. The state under different atmospheric pressure can be set and simulated
